Control Cable ToxFree® BFC

Application

Conduspar Control Toxfree® Blinded Cables are indicated for command and control circuits, in places with high electromagnetic interference and with high safety requirements for people and equipment. Toxfree® Control Cables do not emit toxic fumes and corrosive gases in the event of a fire.

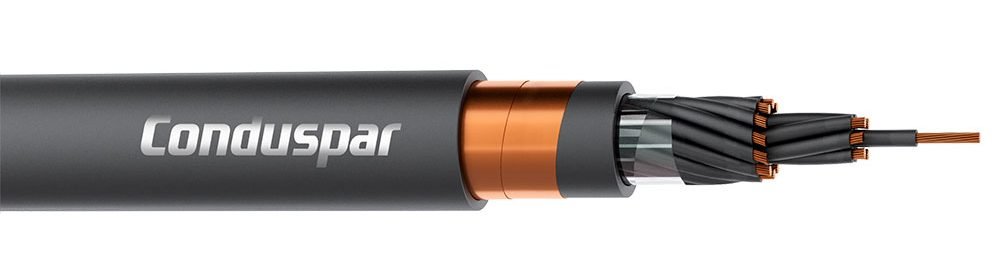

Construction

Conductor: bare electrolytic copper wires, flexible stranding class 5 – according to NBR NM 280.

Insulation: thermosetting compound of HEPR (ethylene propylene rubber).

Identification: numbered black lanes.

Separator: non-hygroscopic polyester tape.

External cover: halogen-free, flame-retardant thermoplastic compound (SHF1) in black.

Maximum Operating Temperatures

In steady state: 90 °C

Normas de Referência

ABNT NBR 16442 – Non-halogenated and low smoke control cables for voltages up to 1 kV – Performance requirements.

ABNT NBR NM 280 – Insulated cable conductors (IEC 60228, MOD).

Conditioning

In reels.

Nominal Dimensions
